13609675

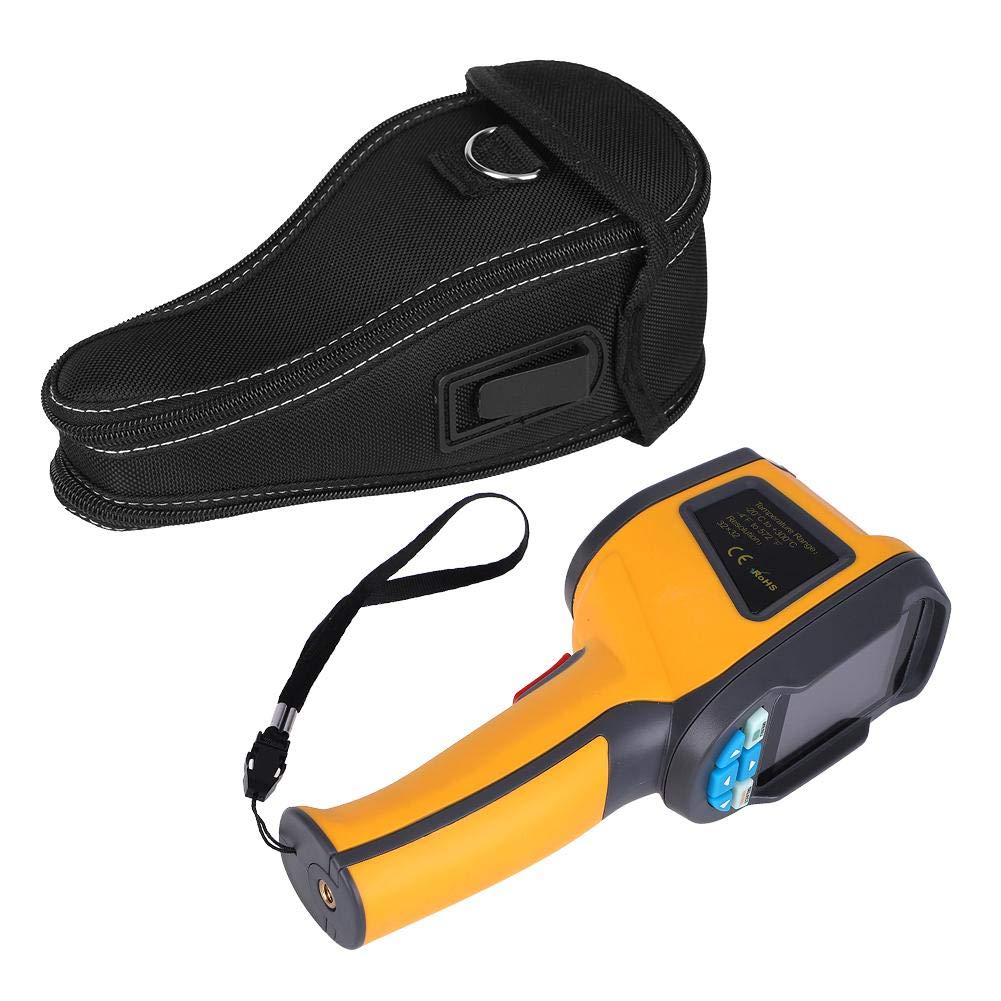

Specifications:Display screen: 2.4" full-angle high resolution color screenResolution of infrared image: 32*32(1024 pixels)Resolution of visible image: 0.3 mega pixels Field angle/shortest focal distance: 33*33/0.5mThermal sensitivity: 0.3°CRange of temperature measurement: -20°C to +300°CAccuracy of temperature measurement: ±2% or ±2°C (±2% or ±4°F )EmissivityAdjustable: 0.1-1.0Image capturing frequency: 6HzRange of wave length: 8-11.5umFocal distance: Fixed focal distanceColor palette: Iron red, rainbow, rainbow high contrast, gray scale (black glow) and gray scale (white glow)Vision option: 25% step infrared to visional to infrared and visional imageMemory card: Micro SD card 4GBFile format: bmpPower supply: AA battery * 4 (NOT included)Battery life: 6 hoursAuto power-off time12 minutesAuthentication: CE (EN61326-1:2006)Operating temperature: -5°C to ±40°CStorage temperature: -20°C to ±50°CRelative humidity: 10% RH to 80% RHSize: 21.5*6*9cm/8.5*2.4*3.5inPackage Includes:1 x Thermal Imaging Camera (batteries are NOT included)1 x Bag
☁【Accurate Effect】The Range of temperature measurement: -20°C to +300°C. Resolution of infrared image is 32*32(1024 pixels). Resolution of visible image is 0.3 mega pixels. Field angle/shortest focal distance is 33*33/0.5m. Thermal sensitivity: 0.3°C. Emissivity is Adjustable 0.1-1.0. Image capturing frequency is 6Hz. Range of wave length is 8-11.5um. Focal distance: Fixed focal distance.
☂【Clear Image】2.4" full-angle high resolution color screen. HT-02D is a thermal Imaging Camera which combines the functions of surface temperature measurement and real-time thermal imaging. Even the potential problems can be clearly displayed on the color screen which helps customers quickly locate the central point to measure cursor and temperature. Color palette: Iron red, rainbow, rainbow high contrast, gray scale (black glow) and gray scale (white glow).
❀【Image Data】To improve recognition, this product is equipped with a vision camera. Based on practical requirements, it can turn thermal image into visional image. Thermal image and visional image can be stored in the dismountable memory card. Adjust the images and store them in PC which are used to generate report or for printing. Memory card: Micro SD card 4GB.
☃【Quick】HT-02D is easy to operate. After seconds it can be tested. This product is the optimum product for electrician and maintainer. It can quickly find out the problem area. The traditional thermal Imaging Camera shall measure each component one by one but this instrument does not need to. Therefore, it helps to save our customers' time.
☀【Multifunction】HT-02D Infrared thermal imager can identify problems before they cause errors. Widely used for installing electrical equipment, repairing roof insulation materials, heating pipes, insulation materials for residential and commercial buildings, or noting the degradation of industrial facilities, you can easily use this equipment for preventive maintenance for diagnosis, failure Exclude and take pictures.
