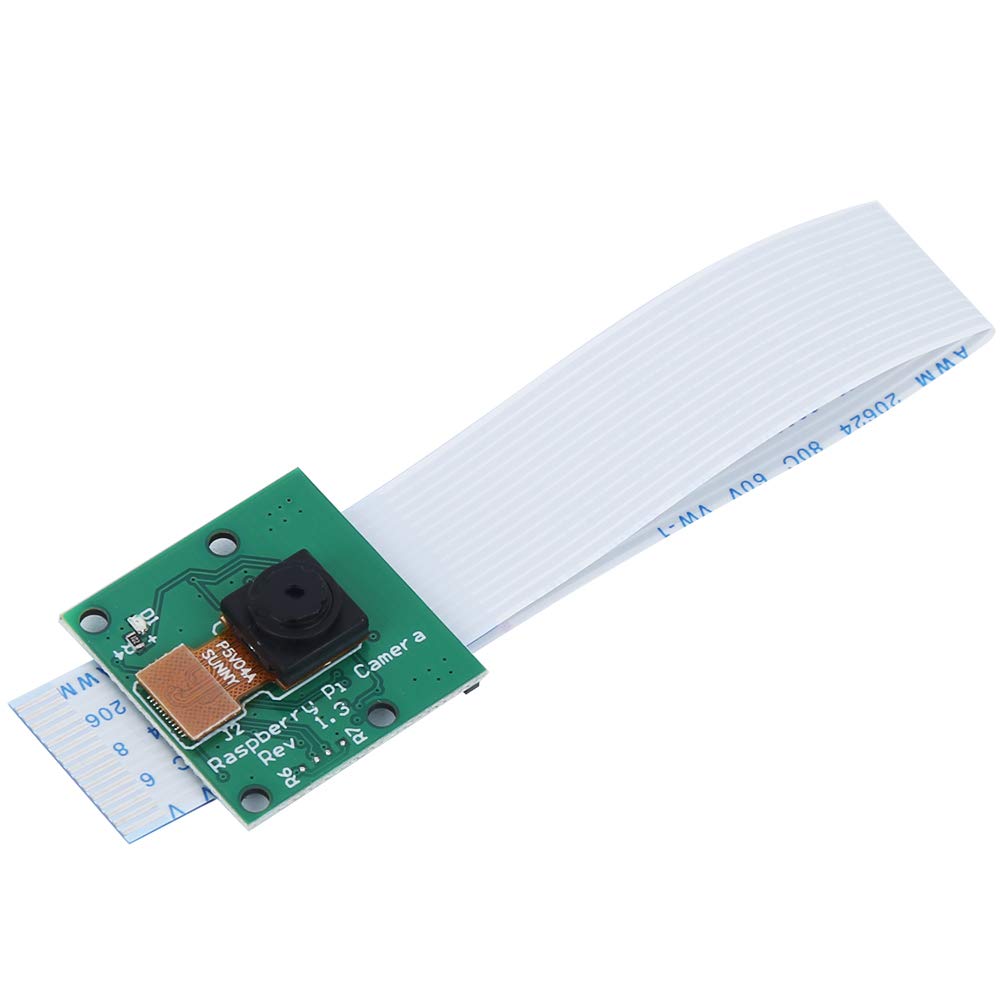

CICIGLOW 5MP Camera Module for Raspberry Pi 3 Model B - 1/4" 5 Million Pixel CSI Interface with 15cm Ribbon Cable - Perfect for DIY Projects, Home Security & Raspberry Pi Photography

Specification:Item Type: CSI interface cameraMaterial: Synthetic cardboardLens: 1/4 5MFocal Length: Approx. 3.29mm / 0.13inAperture: 2.9Field Angle: 72.4 degreeConnection Method and Connector Position: 90-degree vertical connector(the one beside the HDMI port). When connecting, the contact side faces the HDMI interfaceSoftware Use: 1. RPi firmware and raspi-config have been updated for the camera, please execute apt-get update2. Select camera in raspi-config, start the camera driver in RPi firmware, and restart3. Use command line programs raspivid and raspistill to operate the camera and capture video clips or images4. The captured video clip needs to be played by mplayerHow to Broadcast the Data of the Camera via Live Webcast: Through the nc command (ncat-Concatenate and redirect sockets), the input data of the camera is directly redirected to the network port for outputSize of Flexible Cable: Approx. 15cm / 5.9inPackage List:1 x CSI Interface Camera
